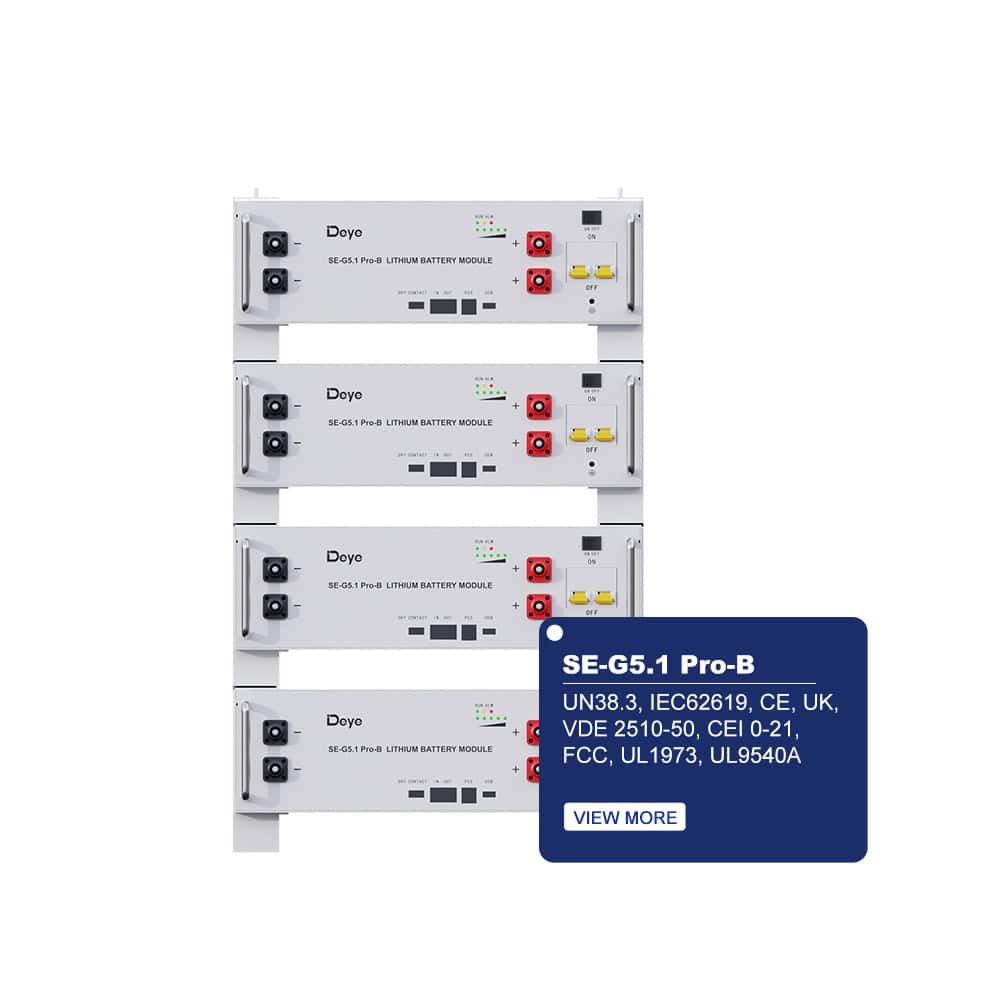

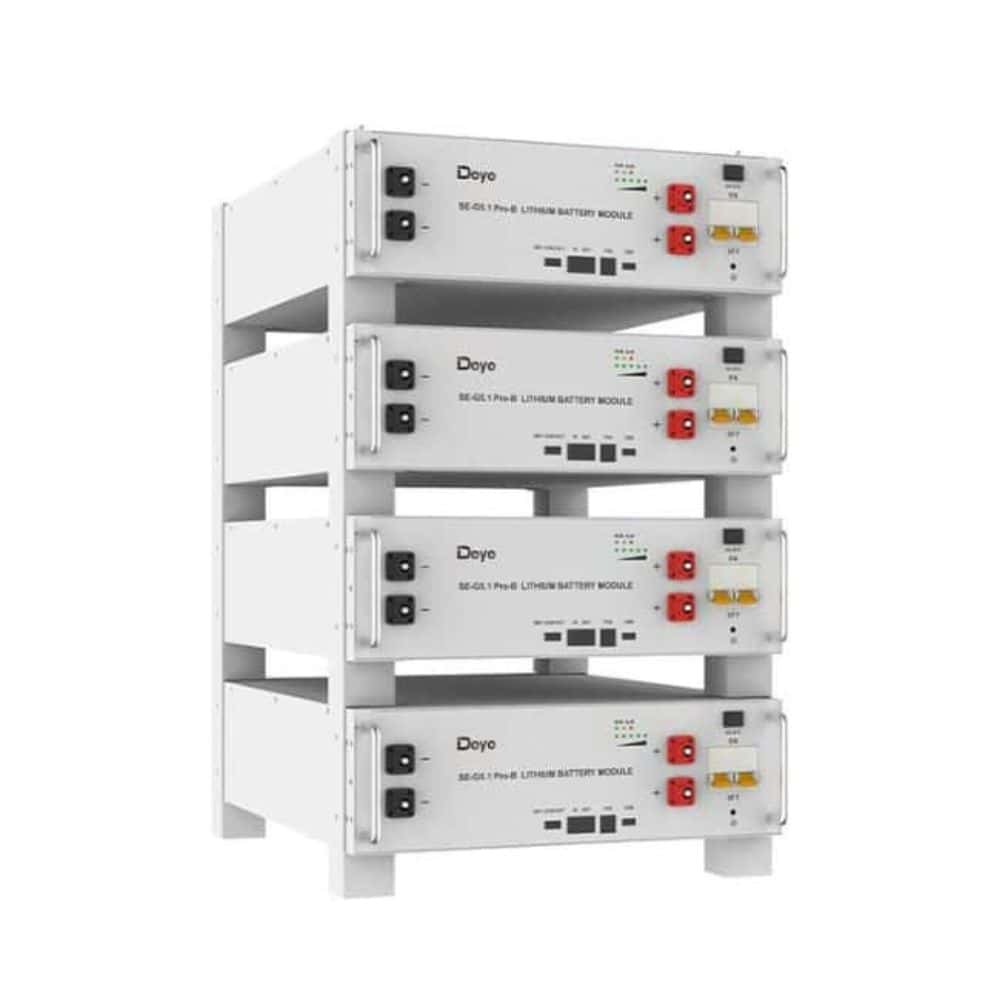

Name: DEYE SE-G5.1 Pro-B | 5.1 kWh | Low Voltage Modular Standing Battery
Brand: E2C Shop
Availability: InStock

DEYE SE-G5.1 Pro-B | 5.1 kWh | Low Voltage Modular Standing Battery

€0,00

Taxes included. Shipping calculated at checkout.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible. Need to return something? Just let us know.

Category	Specification
Battery Chemistry	LiFePO₄
Built-in Circuit Breaker	125A 2P, 60Vdc
Capacity (Ah)	100
Scalability	Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V)	51.2
Operating Voltage (V)	43.2 – 57.6
Energy (kWh)	5.12
Usable Energy (kWh)	4.6
Recommended Depth of Discharge	90%
Dimension (W×H×D, mm)	440 × 133 × 540
Weight Approximate (kg)	45
Master LED Indicator	5LED (SOC: 20% – SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure	IP20
Operating Temperature	Charge: 0~55°C (Optional heating: -20°C – 55°C), Discharge: -20°C~55°C
Altitude	≤2000m
Cycle Life	≥6000 (25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL)
Installation	Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm)
Communication Port	CAN2.0, RS485
Warranty Period	10 years
Certification	UN38.3, IEC62619, CE, UK, VDE 2510-50, CEI 0-21, FCC, UL1973, UL9540A, UL9540
